Amateur Radio Station, G8DKK

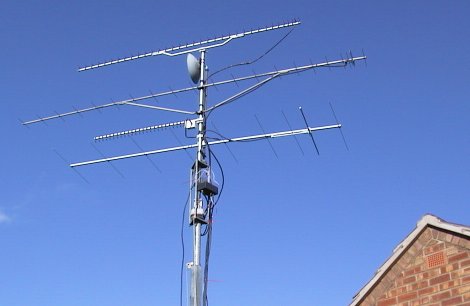

Aerial1 The antenna system at G8DKK

The mast is an Altron Slimline tilt-over and since installation some years ago has allowed me to both repair antenna problems and replace antennas with ease. The tilt down/tilt up process takes only 10 minutes. The antennas in the photo are: 2 metre/9 element Tonna, 13cm/25 element Tonna, 70cm/21 element Tonna, 23cm/35 element Tonna and 3cm/40cm dish. Since the photo was taken in February 2000 the 13cm antenna has been removed and a 6 metre yagi installed.

73

Bryan Harber
bryan@harber.f9.co.uk ICQ Number 68713894

The station:

Band Tx/Rx Power Antenna
6m
50MHz 		Transverter
+FT77(28MHz) 		20W 3 elements
2m
144MHz 		IC821H+PA
Hb Transverter+PA 		100W 9 elements
70cm
432MHz 		IC821H+PA 70W 21 elements
23cm
1296MHz 		Transverter+PA
+IC202 or
2m transverter 		40W 35 elements
13cm
2320MHz 		Transverter+
IC202 or
2m transverter 		1W 25 elements
3cm
10368MHz 		Transverter+TWTA
IC202 or
2m transverter 		10W 40cm dish
1.2cm
24192MHz 		DB6NT transverter
+FT790 		1mW 30cm dish

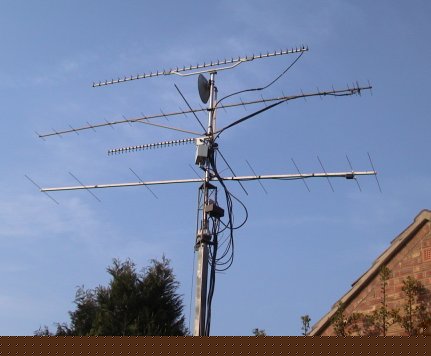

29/5/03
Taken 29th May 2003

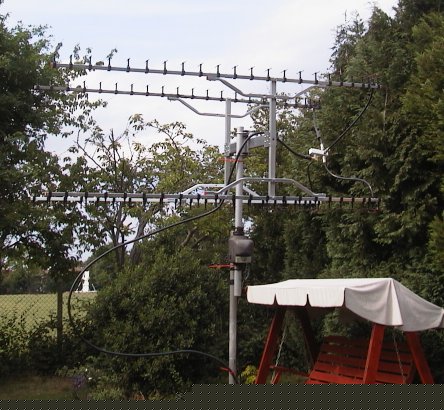

29/6/03
Taken 29th June 2003
